کنسول هوکا اثر بهاره امانلو

چهارمین شب معماران، تقدیر ویژه ھیئت داوران دوازدهمین دوره‌ی طراحی ایران، 1403، بخش مبلمان

Bahare Amanlo / Huka console

ایران سرزمین شعر است؛ چه می‌شود اگر تلاش کنیم تا این شاعرانگی را حتی در باز کردن در یک کمد یا کابینت جستجو کنیم.

فرم كلي و شكل خارجي كنسول هوكا مكعب مستطيل است. اجزا راست‌گوشه با زاويه نود درجه نسبت به هم قرار دارند؛ اما در فرم برخي اجزا نرمي و انحنا ديده ميشود به ويژه در بخش بازشو كه به تفصيل توضيح داده خواهد شد. ابعاد مكعب مستطيل خارجي بدين شرح است: طول 120 سانتيمتر، عرض 60  سانتيمتر و ارتفاع 91 سانتيمتر. در سطح فوقاني از متريال نوين تِرازو استفاده شده است. ترازو همان موزائيك قديمي اما با تكنولوژي ساخت مدرن است كه علاوه بر استحكام و عمر بيشتر، قابليت ساخت در ابعاد بزرگ را داراست. در اين ترازوی سفارشي براي كنسول هوكا سنگ سبز معدن جلبر را كه منحصر به ايران است به عنوان دانه‌ اصلي انتخاب كرديم. همچنين براي جلوه بهتر در اين ترازو از سنگریزه‌های درخشان در ملات بين سنگ‌ها استفاده شده است. وجه رو به رو محلی برای تعبیه بازشو جهت دسترسی به داخل کنسول است. بازشوی کنسول هوکا به نوعی ایده اصلی را در این اثر به همراه دارد. این بازشو با الهام از کابینت‌های قدیمی که در پارچه‌ای داشته‌اند طراحی شده است. و علاوه بر آن در راستای تحقق شِمایی ذهنی از بازی میان انعطاف‌پذیری و صلبیت به سراغ قاب‌های چوبی برای مهار کردن پارچه در 5 قسمت رفتیم. این قاب‌ها با الهام از یکی از ابزارهای گلدوزی یعنی کارگاه دایره‌ای کوبلن‌دوزی طراحی شده‌اند. یراق به کار برده شده برای اتصال هر قاب به چوب پرده امکان چرخش و جا‌به‌جایی را مهیا می‌کند. در مجموع در پارچه‌ای مهار شده با قاب‌های چوبی به صورت آکاردئونی باز و بسته می‌شود. نقش روی پارچه بازنمایی بافت کاهو با تکنیک رنگ روغن است که تصویر آن روی پارچه ساتن چاپ گردیده است.

در وجوه جانبی از عناصر میله‌ای دراز و باریک (دوبل) از جنس چوب راش استفاده شده است. فاصله‌ی میان چوب‌ها (به اندازه شعاع هر میله) باعث ایجاد بازی بصری باز و بسته در جدار می‌شود و شِمایی از داخل کنسول را نمایش دهد. کنسول هوکا می‌تواند مقابل یک دیوار و یا در میانه‌ی فضا قرار گیرد. این کنسول سه کشو دارد که علاوه بر تکرار بازی باز و بسته در آن‌ها قابلیت این را دارند که به طور کامل از بدنه خارج شوند و به عنوان سینی مورد استفاده قرار گیرند. همچنین طبقه میانی کنسول را می‌توان خارج نمود و از آن به عنوان میز کمکی کوچک و یا نیمکت جهت نشستن بهره برد. کاربر می‌تواند بنا بر نیاز خود به یکی از این سه روش از این عنصر استفاده کند. سه عامل رنگ سبز ملایم، در پرده‌ای و متریال تِرازو برای مخاطبین احساس نوستالژی را برانگیخته و همچنین دعوت‌کنندگی و صمیمیت را تداعی می‌کند.

Iran is the land of poetry; What if we try to find this poetic even in opening a closet or cabinet.

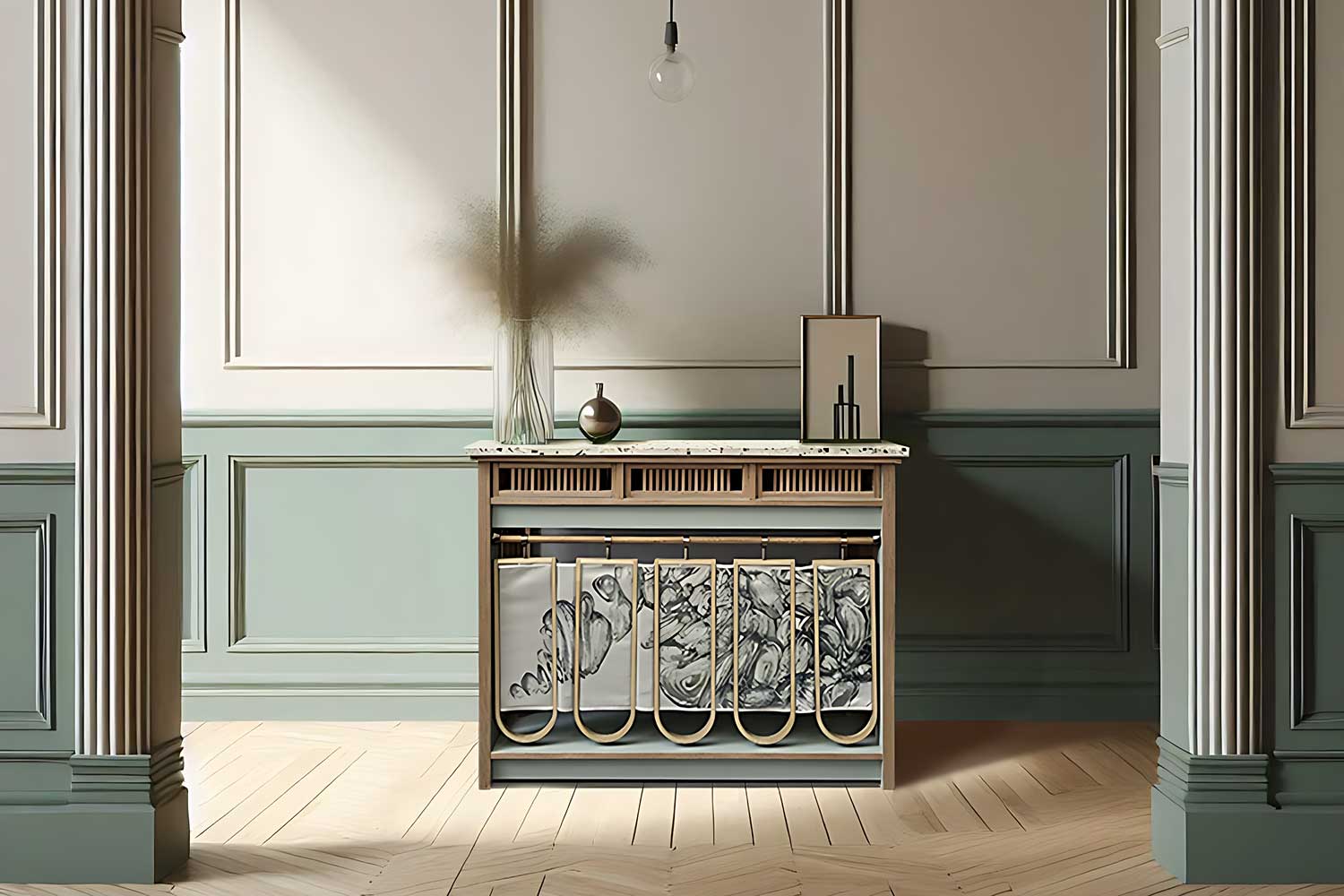

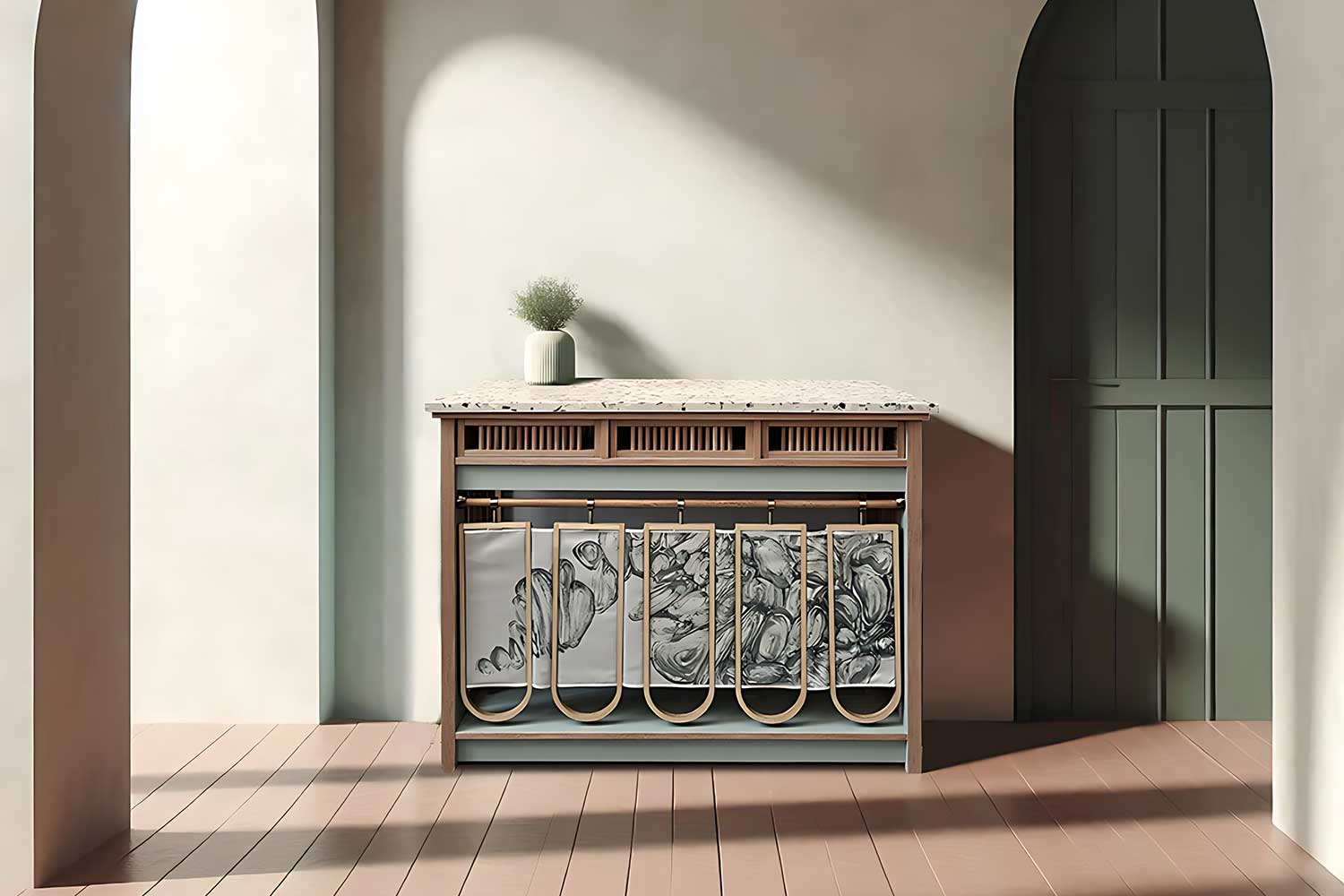

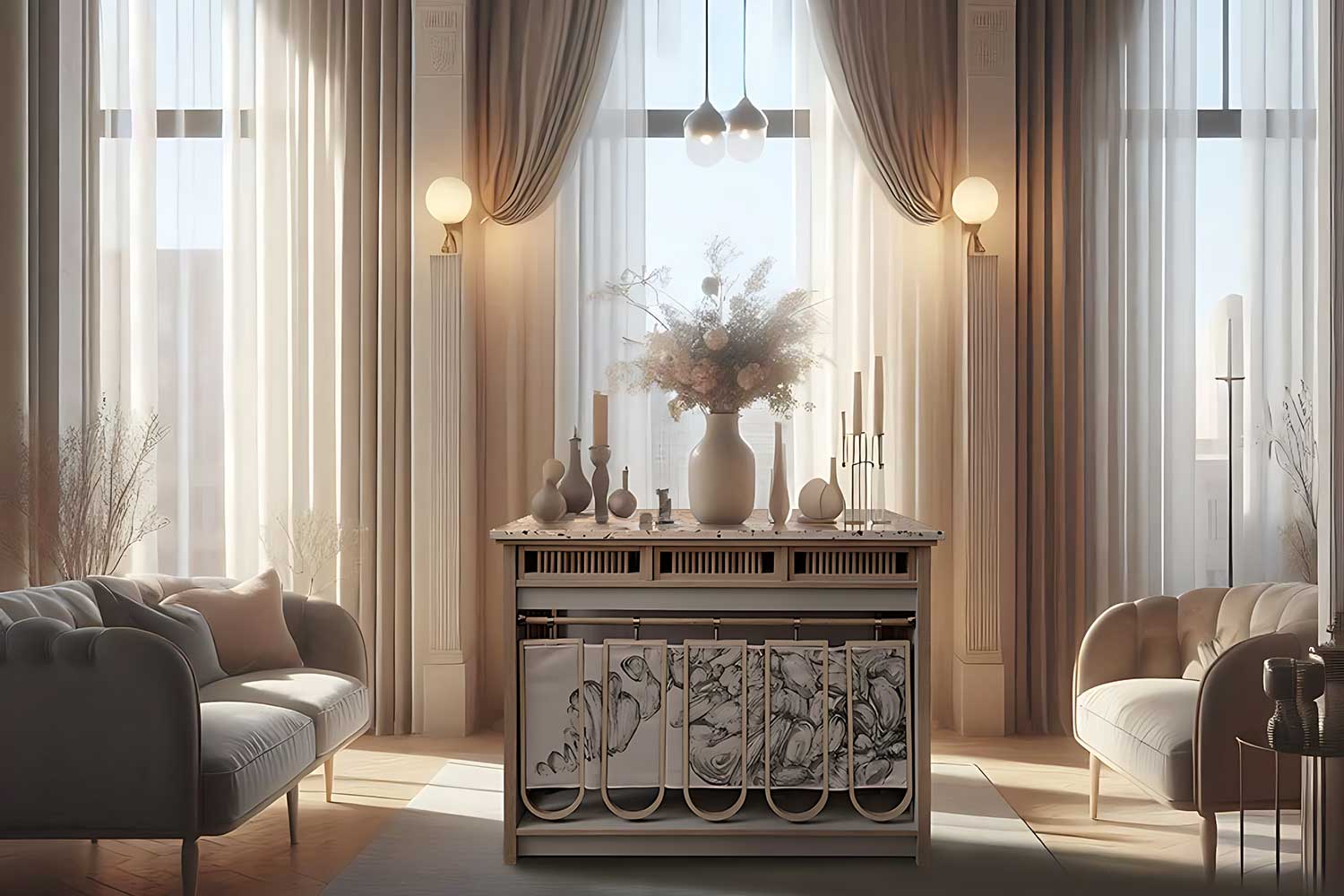

The overall shape and external shape of the Huka console is a rectangular cube. Right-angled components are located at a ninety-degree angle to each other; But in the form of some components, smoothness and curvature can be seen, especially in the opening section, which will be explained in detail. The dimensions of the external rectangular cube are as follows: length 120 cm, width 60 cm and height 91 cm.

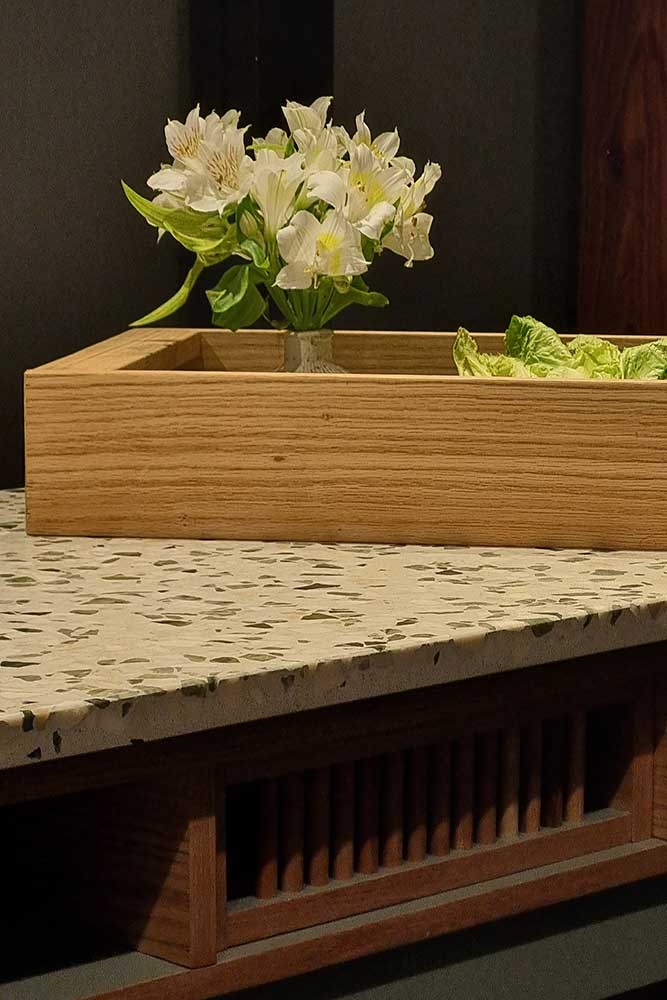

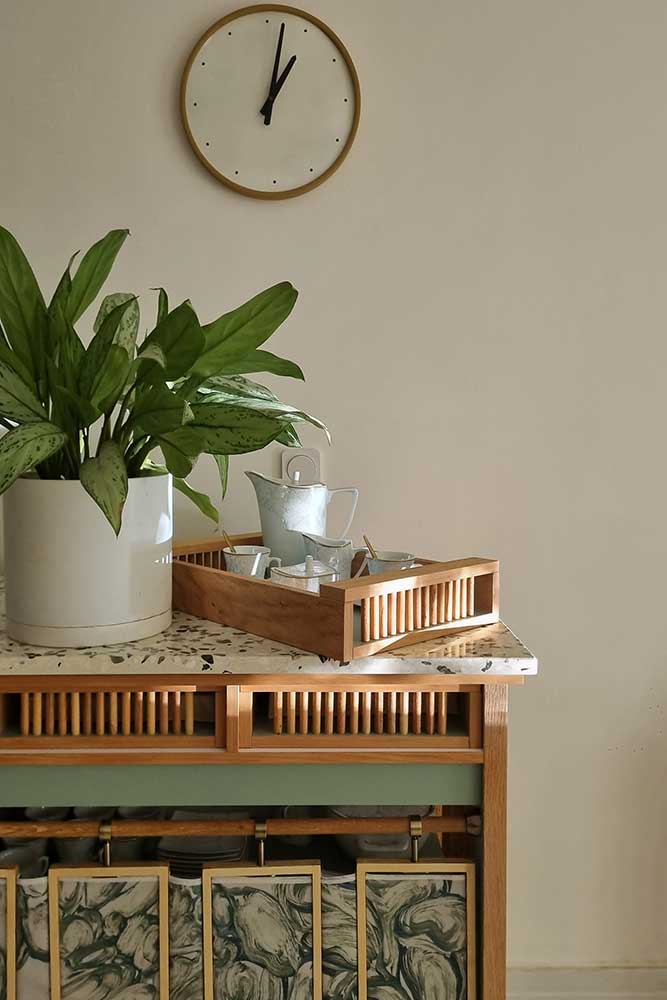

New terrazzo material is used on the top of the console. terrazzo is the same old mosaic (told in Iran) but with modern manufacturing technology, which, in addition to stability and longer life, has the ability to be manufactured in large dimensions. In this customized scale for the Huka console, we chose the green stone of Jolbar mine, which is unique to Iran, as the main stone. Also, for a better effect in this scale, shining pebbles are used in the mortar between the stones.

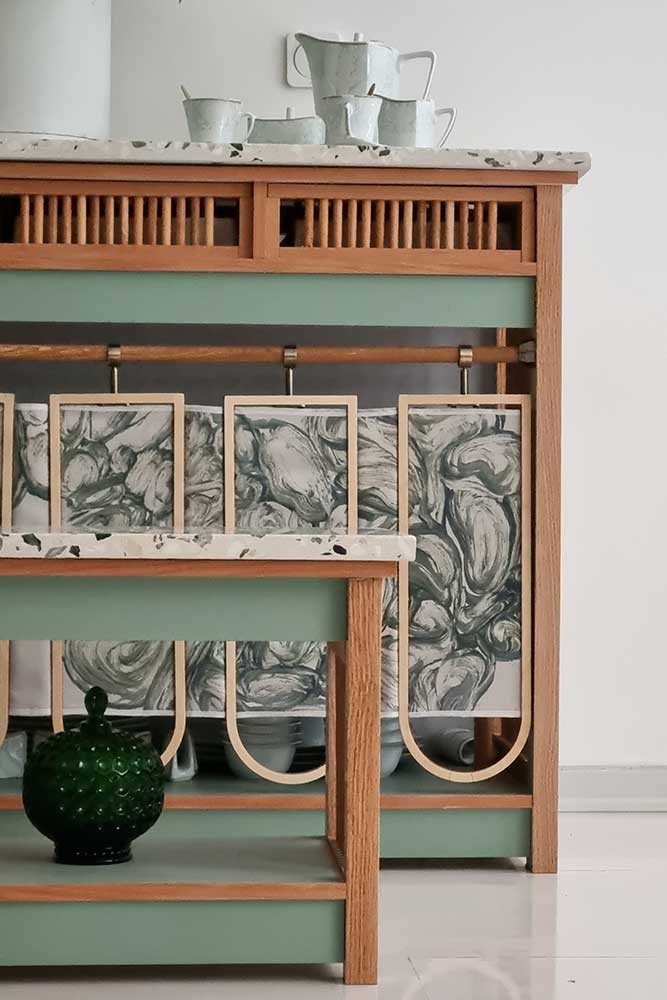

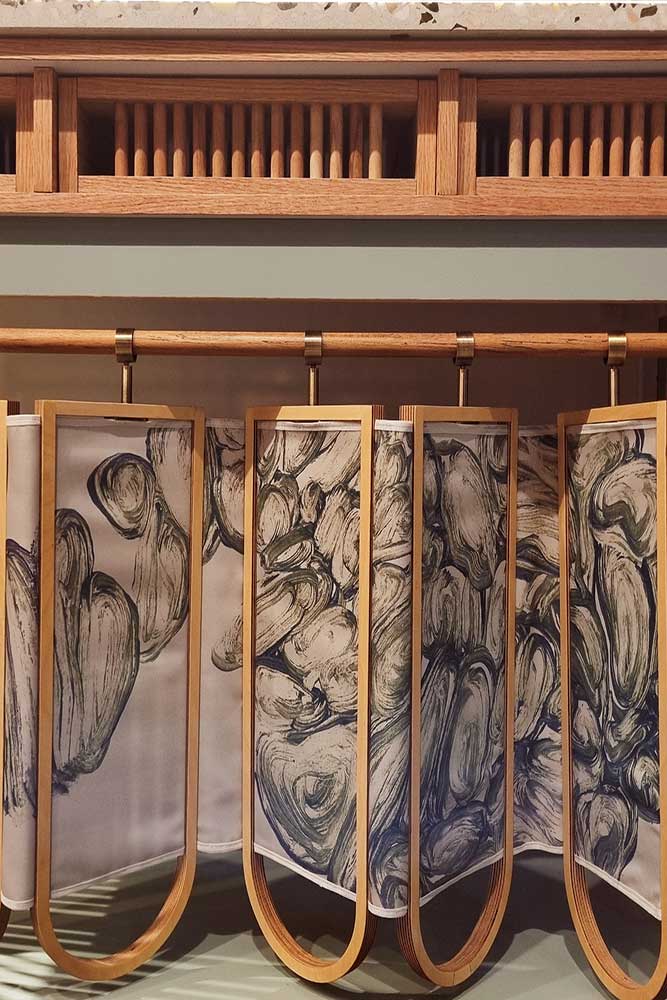

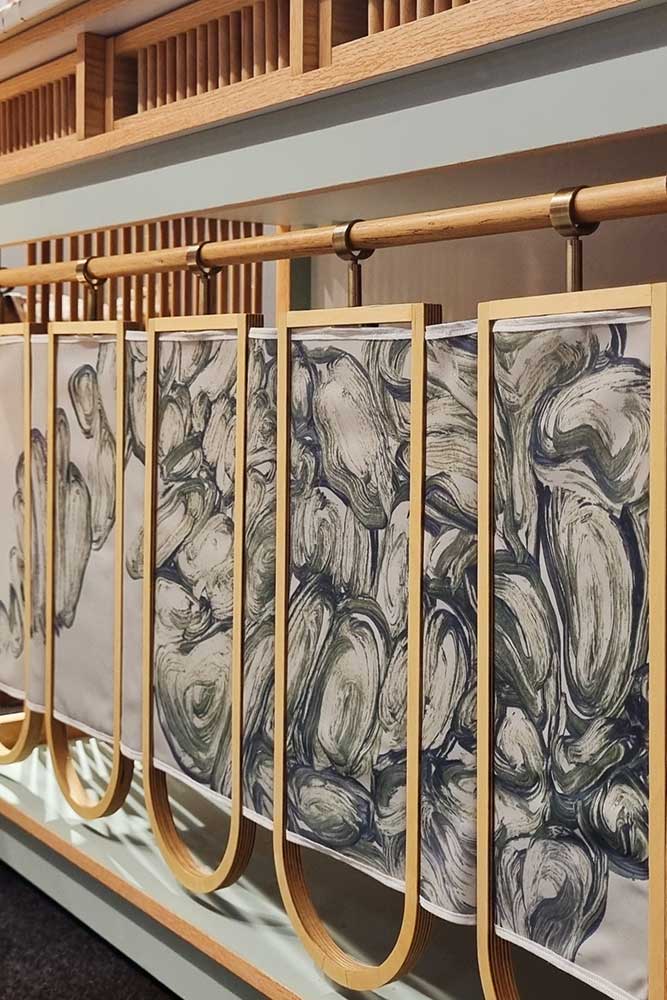

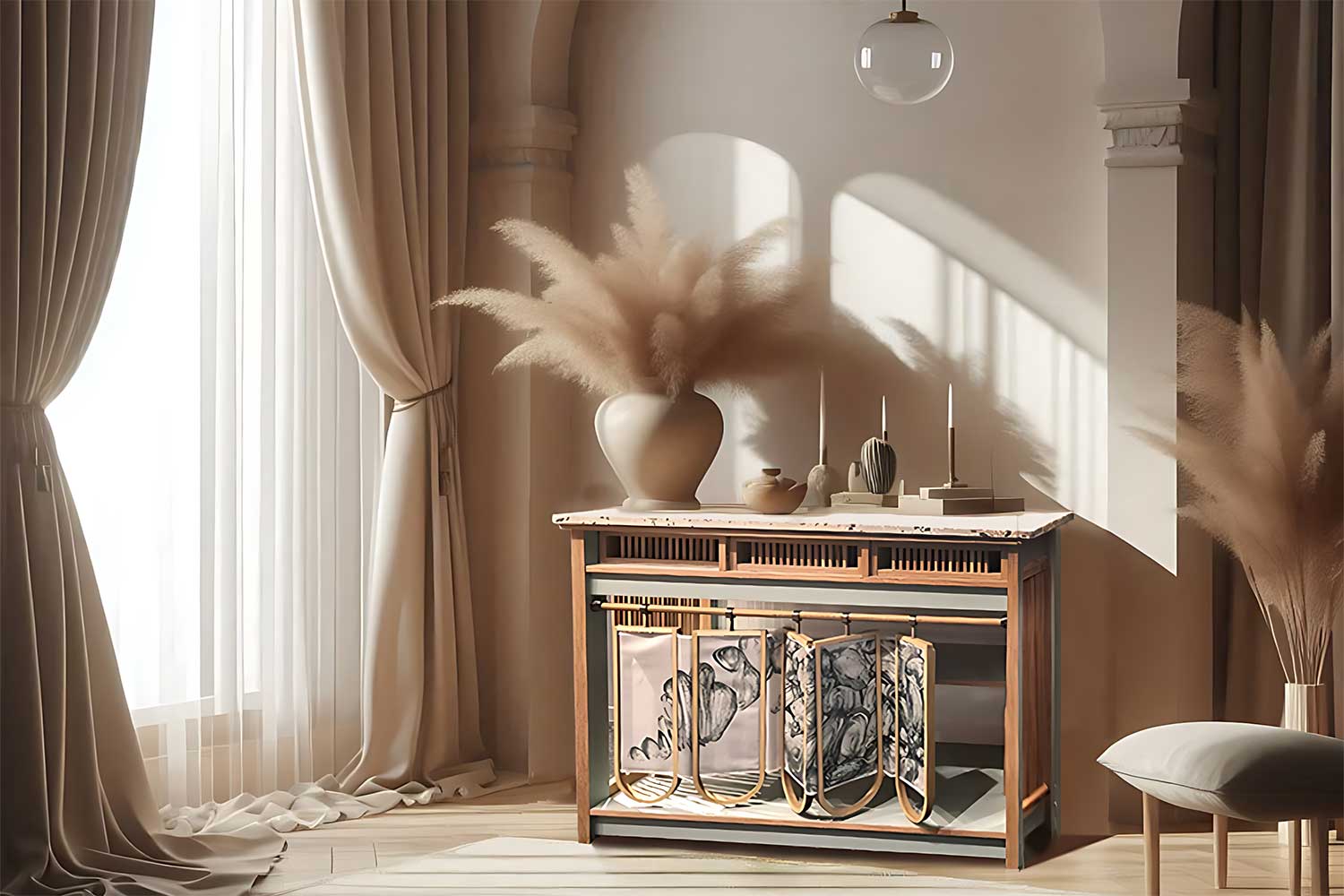

The facing side is a place to install the opening to access the inside of the console. The opening of the Huka console somehow brings the main idea in this work. This opening is inspired by the old cabinets that had fabric doors. And in addition to that, in order to realize the mental schema of the play between flexibility and rigidity, we use wooden frames to restrain the fabric in 5 parts. These frames are designed with the inspiration of one of the embroidery tools, the embroidery circle frame. The hardware used to connect each frame to the curtain rod provides the possibility of rotation and displacement. In general, the door is made of a fabric restrained with wooden frames and opens and closes like an accordion. The pattern on the fabric is a representation of the texture of lettuce with oil paint technique, the image of which is printed on the satin fabric.

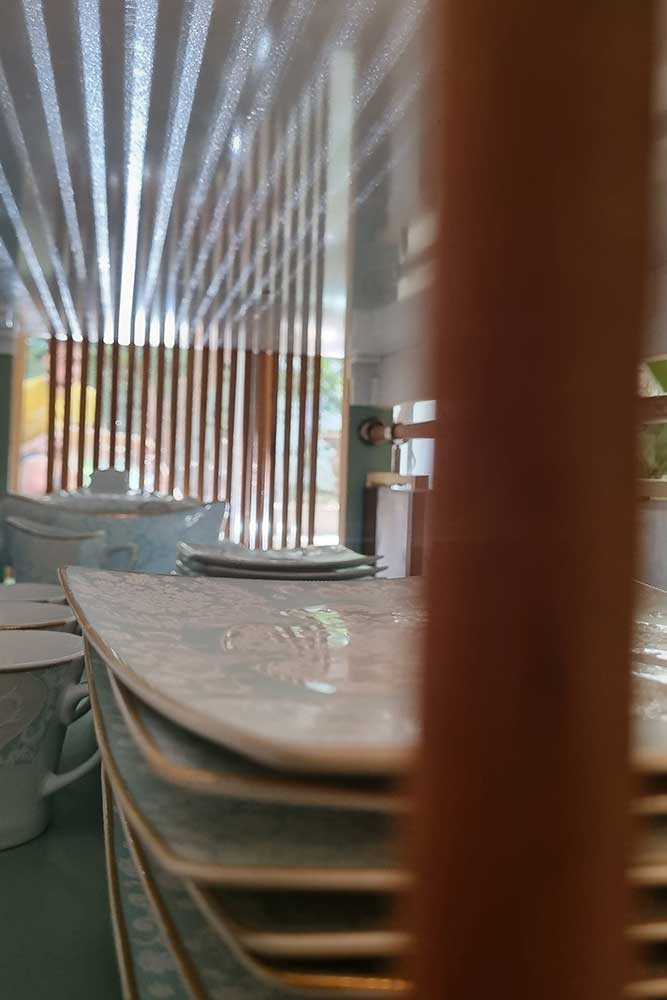

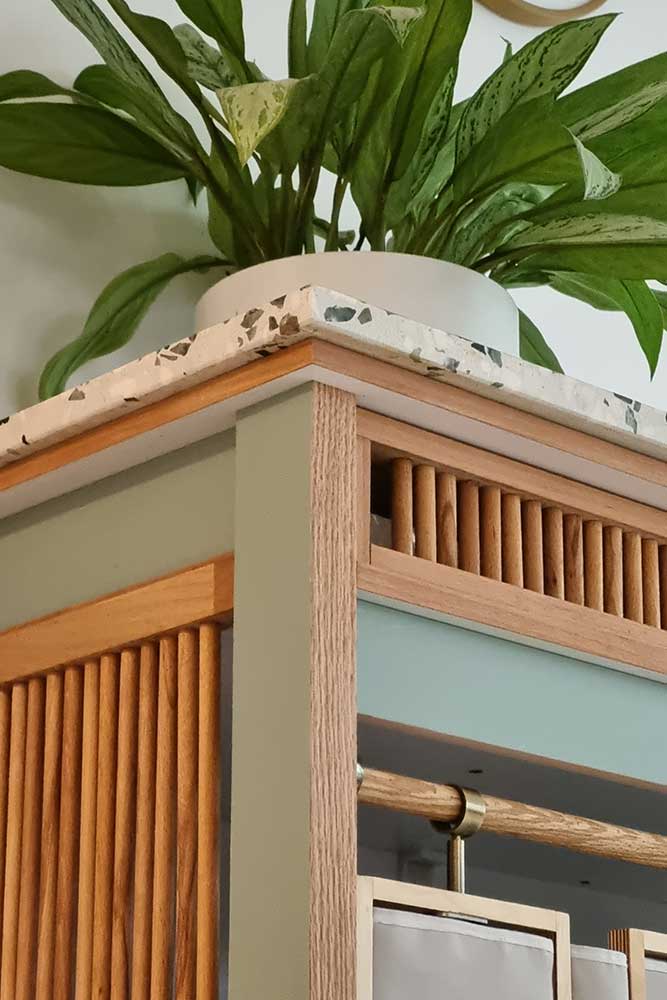

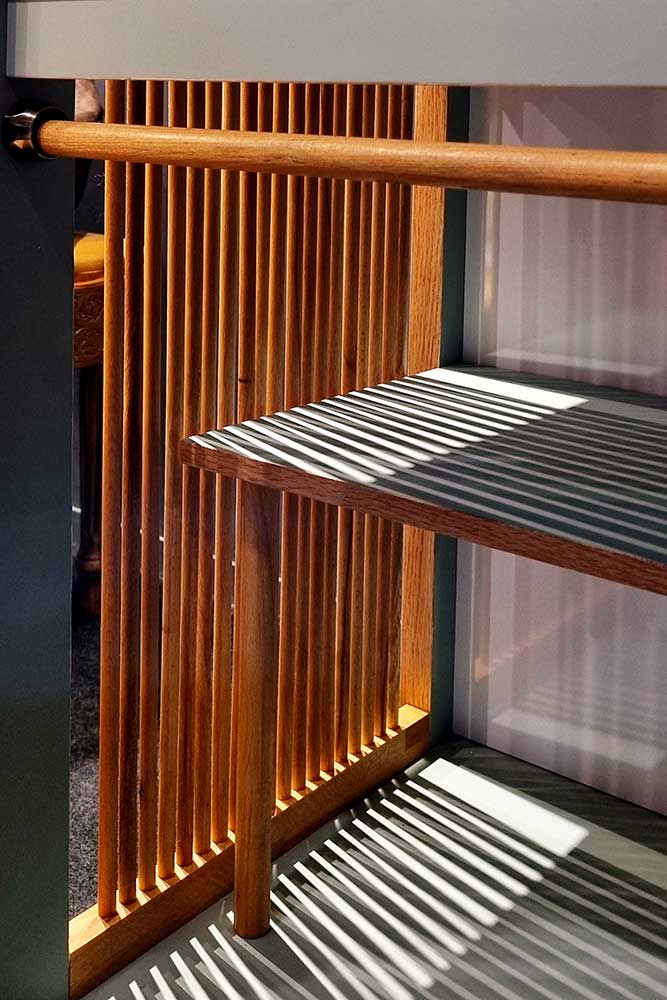

Long and narrow rod elements made of beech wood are used on the side faces. The distance between the sticks (the same as the radius of each rod) creates a visual play of open and closed on the face and shows a schematic of the inside of the console.

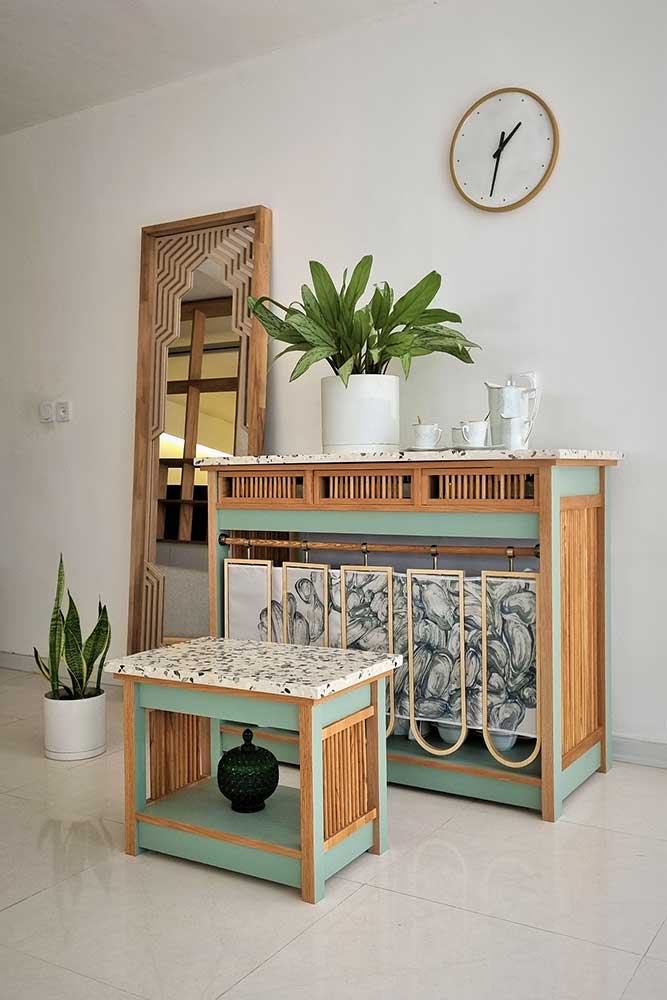

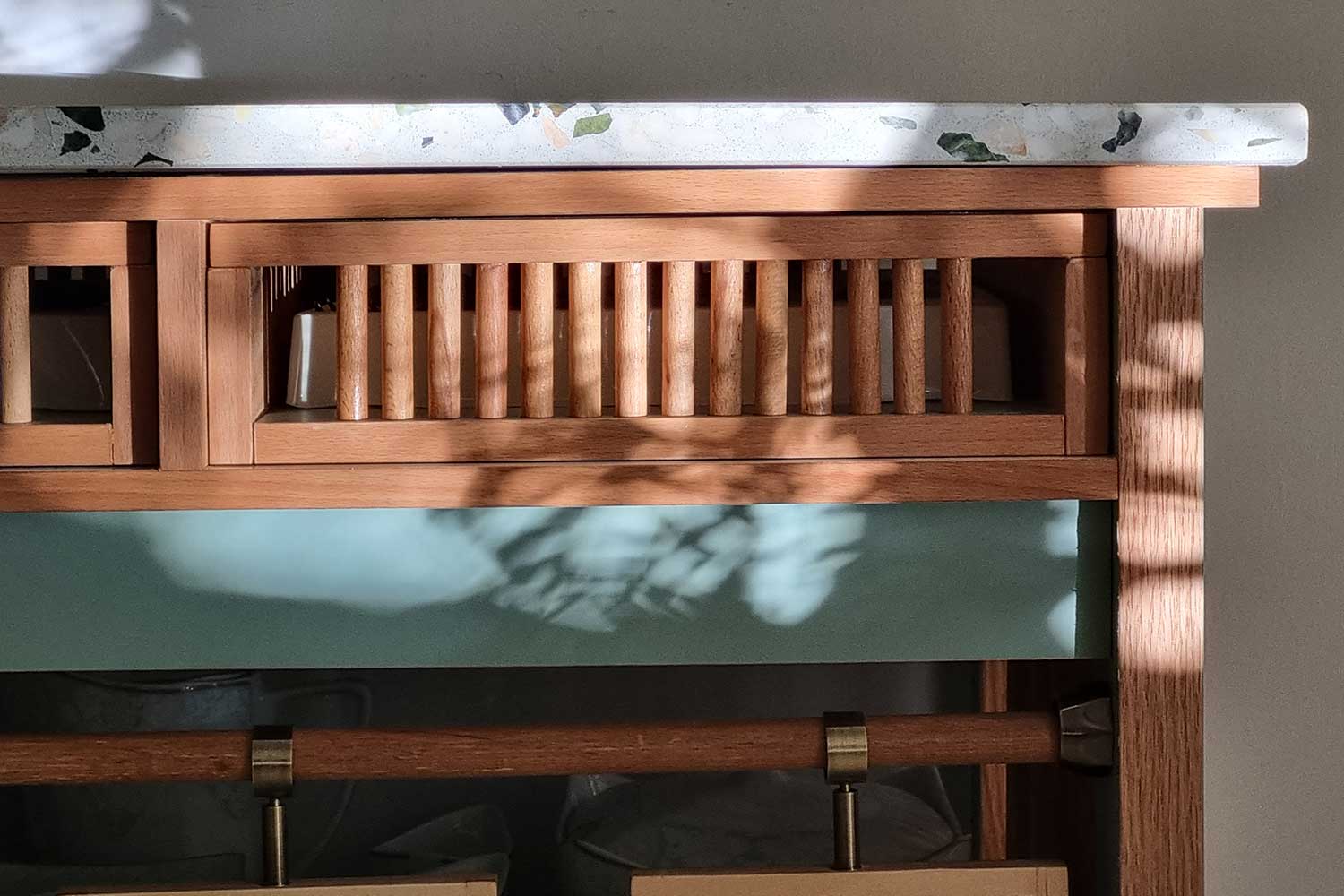

The Huka console can be placed in front of a wall or in the middle of the space. This console has three drawers that, in addition to repeating the open and closed play, they have the ability to be completely removed from the body and used as a tray. Also, the middle shelf of the console can be removed and used as a small side table or bench for sitting. The user can use this element according to his needs in one of these three ways. The three factors of soft green color, curtain door and terrazzo material evoke a feeling of nostalgia for the audience and also evoke invitingness and intimacy.
